Heat shrink 5-core overhead type T5TH O
Application:
A head designed for terminating five-core cables in PVC, PE, XLPE insulation and sheath type Y(A)(n)KY, Y(A)KXS, X(A)KXS, Y(A)KwXS, X(A)KwXS with a rated voltage of 0.6/1 kV.
Construction:
- Termination of the working core with a sealed, pressed or screw terminal

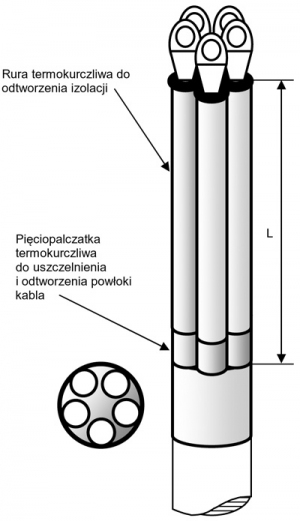

- Reconstruction of insulation and outer coating using a five-finger boot and heat shrink tubing with UV-resistant adhesive
Properties:
- Efficient and uncomplicated installation
- Four types of heads for a wide range of core cross-sections
- Performing a voltage test and putting the cable into operation immediately after completed assembly
Composition:
- The set is a complete set for five wires. The cardboard packaging contains all the necessary elements to make the head along with assembly instructions and material specifications
- The set does not include terminals for terminating working wires. Terminals can be ordered additionally
| Symbol | Cross section of the working core [mm²] | Voltage [kV] | Dimension L [mm] | Number of pieces in the package |
|---|---|---|---|---|
| T5TH O 16-35 | 16-35 | 0.6/1 | 480 | 1 set for 5 strands |
| T5TH O 50-70 | 50-70 | 0.6/1 | 480 | 1 set for 5 strands |
| T5TH O 95-150 | 95-150 | 0.6/1 | 480 | 1 set for 5 strands |
| T5TH O 150-240 | 150-240 | 0.6/1 | 480 | 1 set for 5 strands |
