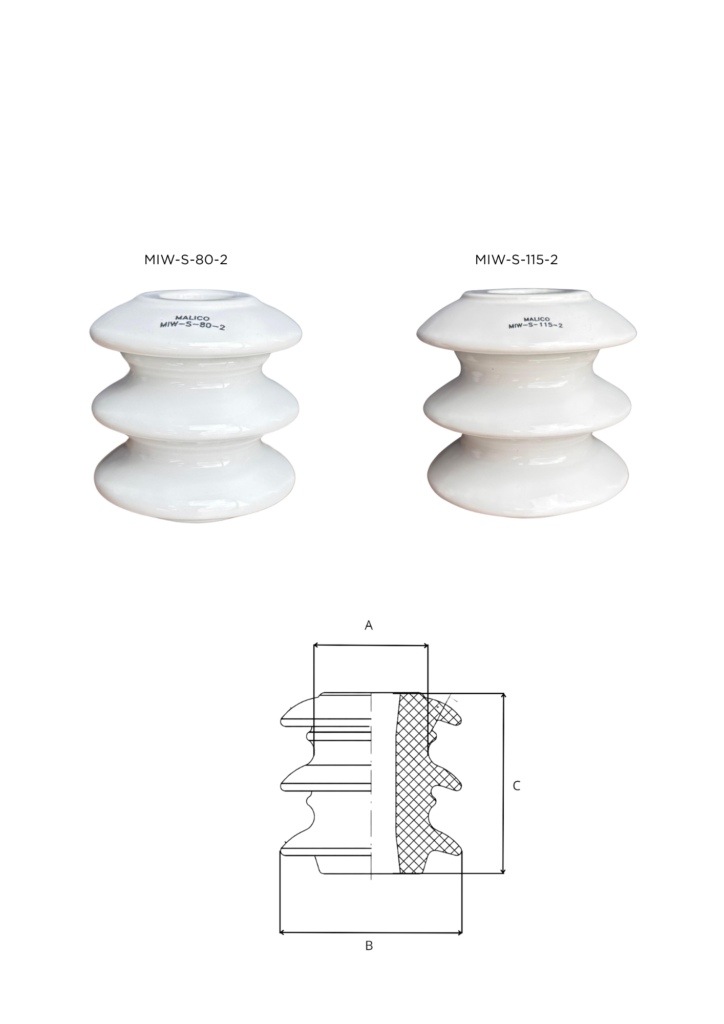

MIW S Porcelain Spool Insulators...
Application:
They are used for the through and strain mounting of bare low-voltage conductors on poles.
Construction:
They are made of glazed porcelain. Mounting to the pole is achieved using shackles, frames, and other dedicated structures.
Insulators
To download:
Contact us
Contact us
| Symbol | Neck diameter [A] |
Shade diameter [B] |
Height [C] |
Rated mechanical strength [kN] |
Insulator mass [kg] |
Number of pieces per package |
|---|---|---|---|---|---|---|
| MIW-S-80-2 | 80 | 50 | 80 | 10 | 0,45 | 1 |
| MIW-S-115-2 | 115 | 65 | 115 | 18 | 1,45 | 1 |
Compliant with standards: PN-E-91030-2:1997 and DIN 48154.
