MV Detectors in the Marine Industry
Optical-acoustic voltage indicators designed to ensure complete safety in the maritime industry.
Detectors with 360° visibility
This solution is designed for use in the maritime industry, as well as at power stations and along power lines. The detectors provide notification of the presence of voltage, thereby tangibly enhancing the safety and reliability of the entire infrastructure. .
Thanks to clear visual and audible signaling, compliance with international standards, and a design adapted for operation in harsh conditions, they constitute essential onboard equipment.
What sets them apart?
Thanks to the CATU voltage detector, you can quickly and easily detect the presence of voltage. The 360° system ensures visibility, indicating operational readiness and detected voltage via LED indicators. These LEDs—visible from a considerable distance, even under direct lighting—guarantee safety. The system also provides audible alerts, issuing a warning signal both upon device activation and when voltage is detected.
You will see and hear the warning under any conditions.

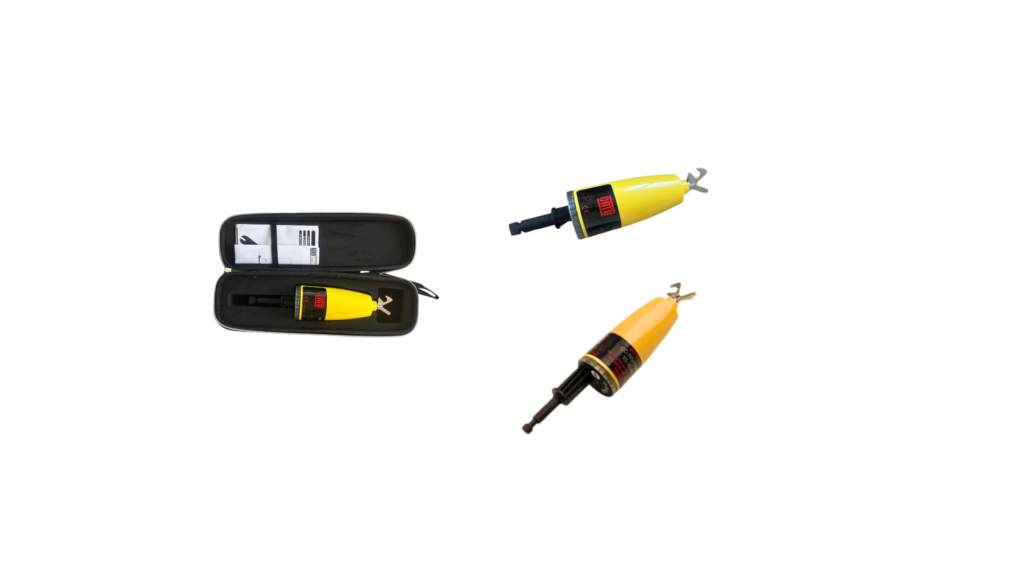

Voltage Indicator CC-765
Application:
Full 360° visibility thanks to visual and audible signals.
A compact and lightweight indicator for indoor and outdoor use, offering a wide voltage detection range.
Characteristics:
- Pressing the TEST button causes the red LED to light up.
- A loud audible signal is emitted: >67 dB(A) at 2 m.
- Upon releasing the button, a green LED lights up; by remaining illuminated for a specific duration, it confirms the proper functioning of the indicator.
- Precise and stable operating threshold.
- High resistance to external factors (impacts, vibrations, moisture).
Construction:
- Temperature range: class N
- Designed for operation at a mains frequency of 50 to 60 Hz.
- Weight: 350 g.
- Dimensions: Ø 59 x 270 mm.
