MV and HV Detectors
Optical-acoustic voltage indicators designed to ensure complete safety at power stations and on power lines.
High-Voltage Detectors with 360° Visibility
This is a solution designed for work at power substations that signals the presence of voltage, thereby genuinely enhancing the safety and reliability of the entire infrastructure.
Thanks to clear visual and audible signaling, compliance with international standards, and a design adapted for operation in harsh conditions, they constitute essential equipment for maintenance crews, network services, and installers.
What sets them apart?
Thanks to the CATU voltage detector, you can quickly and easily detect the presence of voltage. The 360° system ensures visibility, indicating operational readiness and detected voltage via LED indicators. These LEDs—visible from a considerable distance, even under direct lighting—guarantee safety. The system also provides audible alerts, issuing a warning signal both upon device activation and when voltage is detected.
You will see and hear the warning under any conditions.
Detektory WN

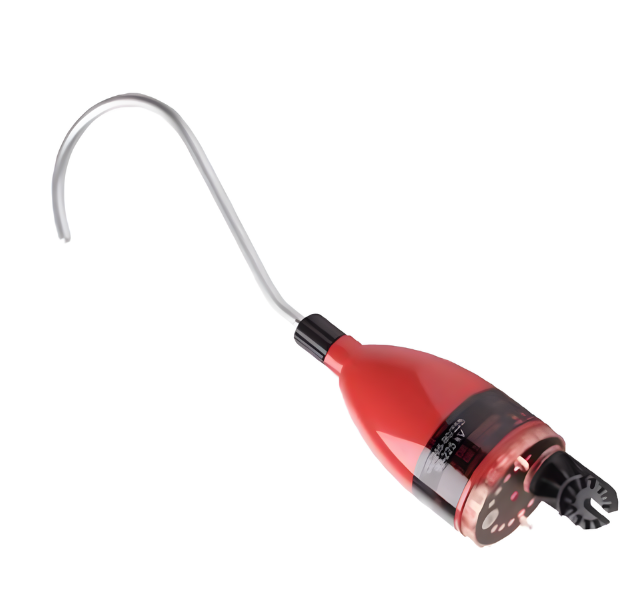

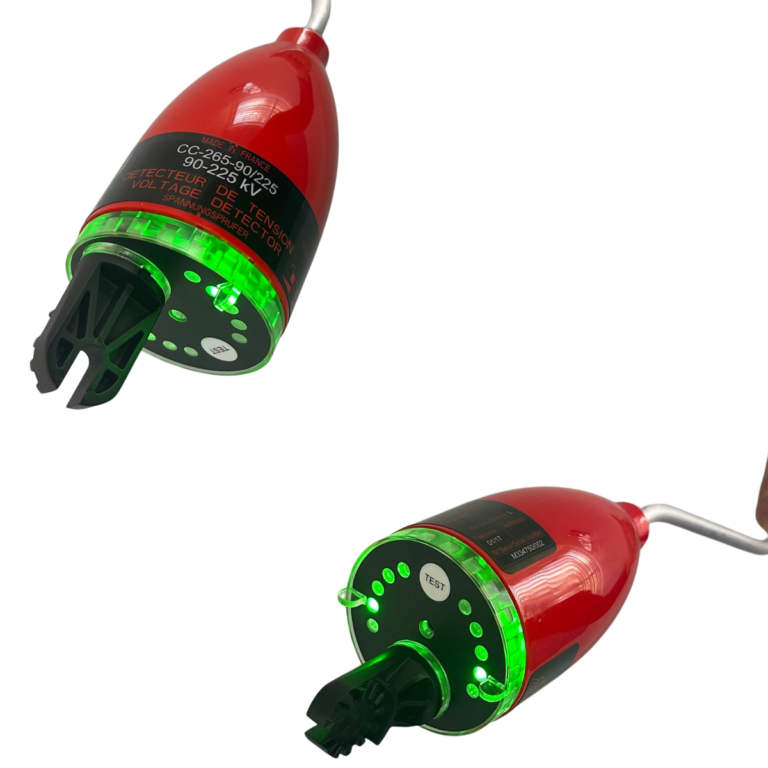

Voltage Indicator CC-265
Application:
Electronic indicator Tensions intended down Work on outside, about high immunity on tremors, Vibrations and rain.
Compact design utilizing capacitive head technology.
Operating voltage range: 44–765 kV in accordance with IEC 61243-1.
Characteristics:
The housing and electronic circuitry are designed with a quick-opening system, enabling easy battery replacement.
Dual voltage presence indication:
-
Bright, flashing red LEDs visible from over 50 meters., even under strong lighting
-
A distinct audible signal at a level of 67 dB(A) at a distance of 1.5 m.
A display with 360° visibility and backlighting, ensuring optimal readability.
Equipment:
Supplied with 3 tips for mounting on an insulating stick:
-
W – 20 mm hexagon
-
C – 12 mm hexagon
-
K – Universal
MV Detectors

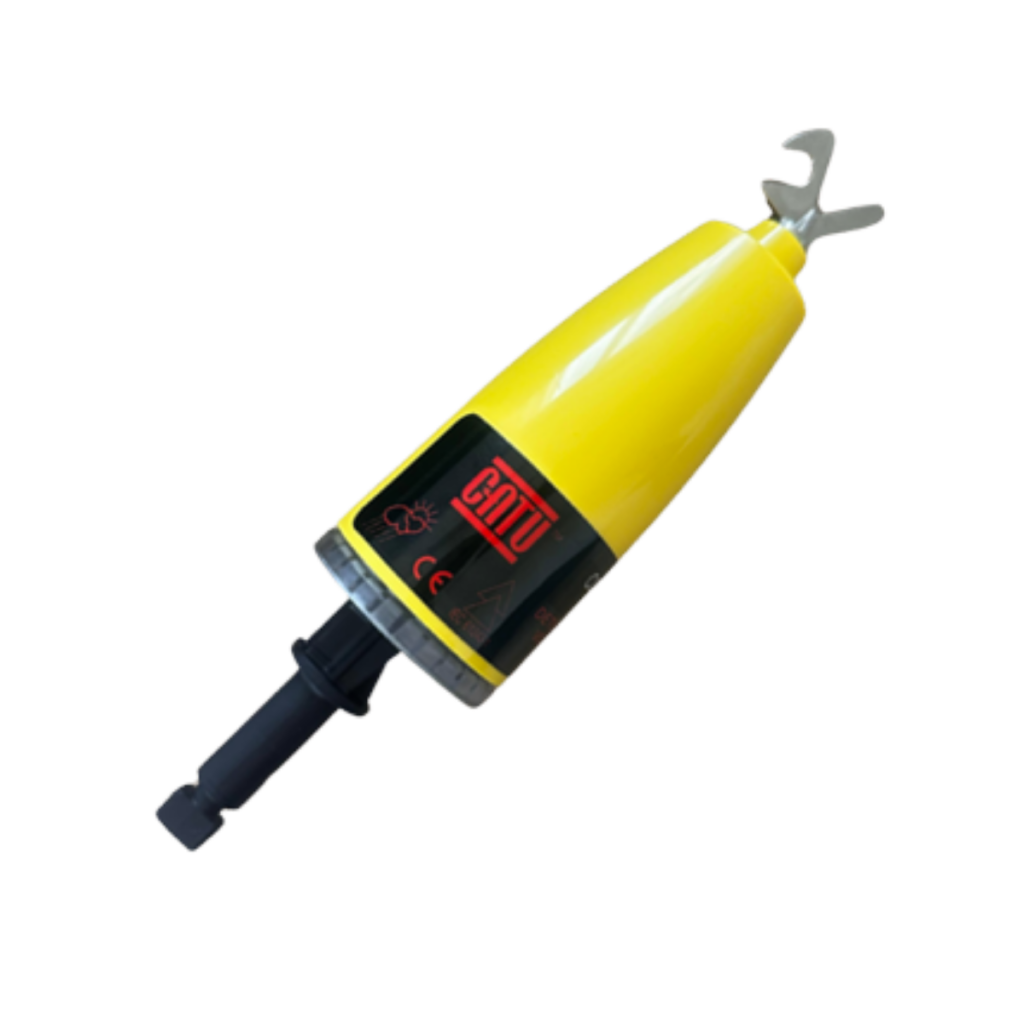

Voltage Indicator CC-765...
Application:
Full 360° visibility thanks to visual and audible signals.
A compact and lightweight indicator
for indoor and outdoor use,
offering a wide voltage detection range.
Characteristics:
- Pressing the TEST button causes the red LED to light up.
- A loud audible signal is emitted: >67 dB(A) at 2 m.
- Upon releasing the button, a green LED lights up; by remaining illuminated for a specific duration, it confirms the proper functioning of the indicator.
- Precise and stable operating threshold.
- High resistance to external factors (impacts, vibrations, moisture).
Construction:
- Temperature range: class N
- Designed for operation at a mains frequency of 50 to 60 Hz.
- Weight: 350 g.
- Dimensions: Ø 59 x 270 mm.
