ACOT... safe pulling and through-feeding grips...
Application:

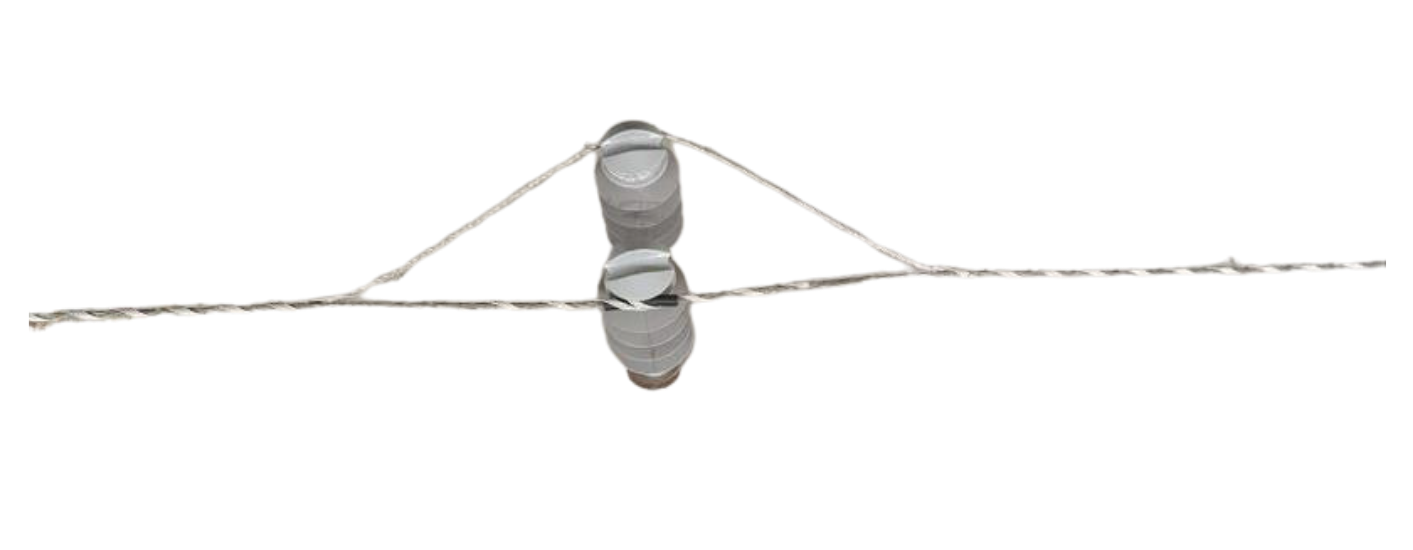

They are used to attach AFL type cables to double support insulators on the side of their heads.
Construction:
- Made of aluminum alloy wires
- Excellent resistance to mechanical loads
- The edges of the handles are properly smoothed to avoid danger.
- damage to the aluminum strands of the conductor
- Suitable for insulators with a neck diameter of 64–73 mm
- Wire lay direction: right-hand
| Symbol | Conductor cross-section [mm²] | Wire diameter [mm] | L1 [mm] | L2 [mm] | Belt color | Mass [kg] |
|---|---|---|---|---|---|---|
| ACOT 35 D64-73 R | 30-35 | 2,59 | 520 | 1040 | Red | 0,14 |
| ACOT 50 D64-73 R | 50-54,6 | 2,59 | 585 | 1210 | Yellow | 0,19 |
| ACOT 70 D64-73 R | 70-75 | 3,07 | 612 | 1260 | Blue | 0,25 |
| ACOT 120 D64-73 R | 117-120 | 3,07 | 945 | 1630 | Purple | 0,35 |
Attachment:
Compliant with standard PN-EN 61284:2002.
To download:
Fittings for AL and AFL conductors
