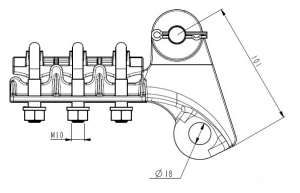

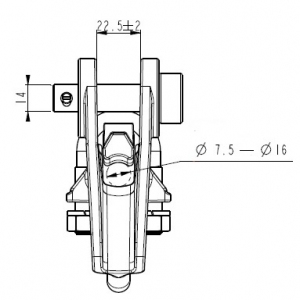

AD 16 AL screwed tension clamps
Application:
Used for tension fastening of bare overhead LV and MV lines.
For aluminum conductors with or without a steel core (AL, AFL).
Construction:
Made of aluminum alloy resistant to corrosion and UV radiation.
Made of aluminum alloy resistant to corrosion and UV radiation.
| Symbol | Cable diameter [mm] |
Cable cross-section AL [mm2] |
AFL-6 wire cross-section [mm2] |
SMFL [kN] |
Weight [kg] |
|---|---|---|---|---|---|
| AD 16 AL | 7.6-16.0 | 35-150 | 35-120 | 50.0 | 0.725 |
Attachment:
