PSR 8 20 ADSS
Rigid pass-through holder for suspending fiber optic cables with a permissible angle of deflection up to 25°.
For short spans 100-150 m depending on climatic conditions.
- Removable elastomer sleeve for cable diameters 8-20 mm
- Closing with a clip. Opening possible with a screwdriver
- The holder body has rounded ends that allow for hanging and inserting a tensioned cable
- Mounting on all types of posts or crossbeams, in two ways:
- 20 mm long steel tape
- Screw Ø 14 x 30 mm with a head width of 20-22 mm

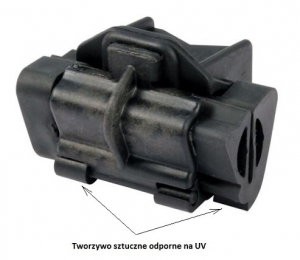

- Made of UV-resistant plastic
- Dimensions: width 90 mm, height 72 mm, depth 80 mm

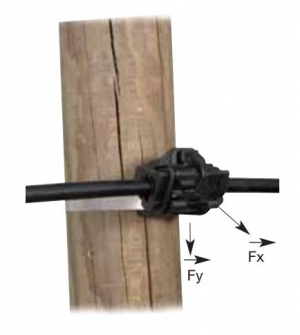

| Symbol | Cable diameter [mm] |
Load Fy [daN] |
Load Fx [daN] |
|---|---|---|---|
| PSR 8-20 ADSS | 8-20 | 350 | 120 |
