Limiter Basics
|
Rated voltage UR [kV] |
3 | 6 | 9 | 12 | 15 | 18 | 22 | 24 | 27 | 30 | 33 | 36 | 45 |

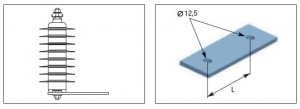

| L [mm] | 100 | 150 | 210 | ||||||||||
| Bracket symbol | EZX 1 | EZX 2 | EZX 3 | ||||||||||
|
Rated voltage UR [kV] |
3 | 6 | 9 | 12 | 15 | 18 | 22 | 24 | 27 | 30 | 33 | 36 | 45 |

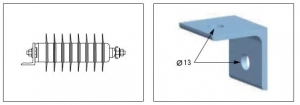

| Bracket symbol | AZ 50 50 | ||||||||||||
|
Rated voltage UR [kV] |
3 | 6 | 9 | 12 | 15 | 18 | 22 | 24 | 27 | 30 | 33 | 36 | 45 |

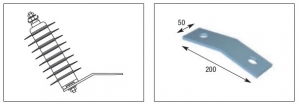

| Bracket symbol | AZPTR | ||||||||||||
Number of pieces in the package for each type of limiter base: 1.
