P...FO
Application:
Tensioning clamp for ADSS and round fiber optic cables. Cone-shaped clamp with high mechanical and climatic strength.
The clamps are designed for spans with a maximum spacing of ≤ 100 m (*).
Construction:
- Open body made of aluminum alloy
- Two wedges made of insulating material that properly distributes stress when fastening to self-supporting cables
- Mounting brackets made of stainless steel, additionally having a durable pad made of insulating material at the suspension point

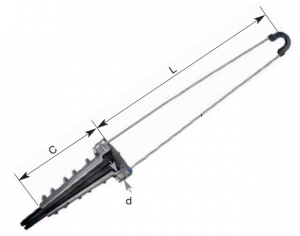

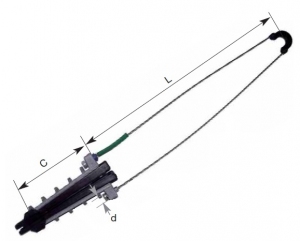

| Symbol | Inside diameter of the cable [mm] | d [mm] | L [mm] | C [mm] |
|---|---|---|---|---|
| PA 120 FO 400** | 10-14 | 14 | 400 | 140 |
| PA 190 FO 400 | 14-19 | 14 | 400 | 200 |
| PA 100 FO 400 TR | 7-10 | 14 | 400 | 140 |
| PA 120 FO 400 TR | 10-12 | 14 | 400 | 140 |
| PA 140 FO 400 TR | 11-15 | 14 | 400 | 140 |
*Suggested maximum span spacing is dependent on cable type, climatic conditions and installation
**Span spacing < 150 m
**Span spacing < 150 m
